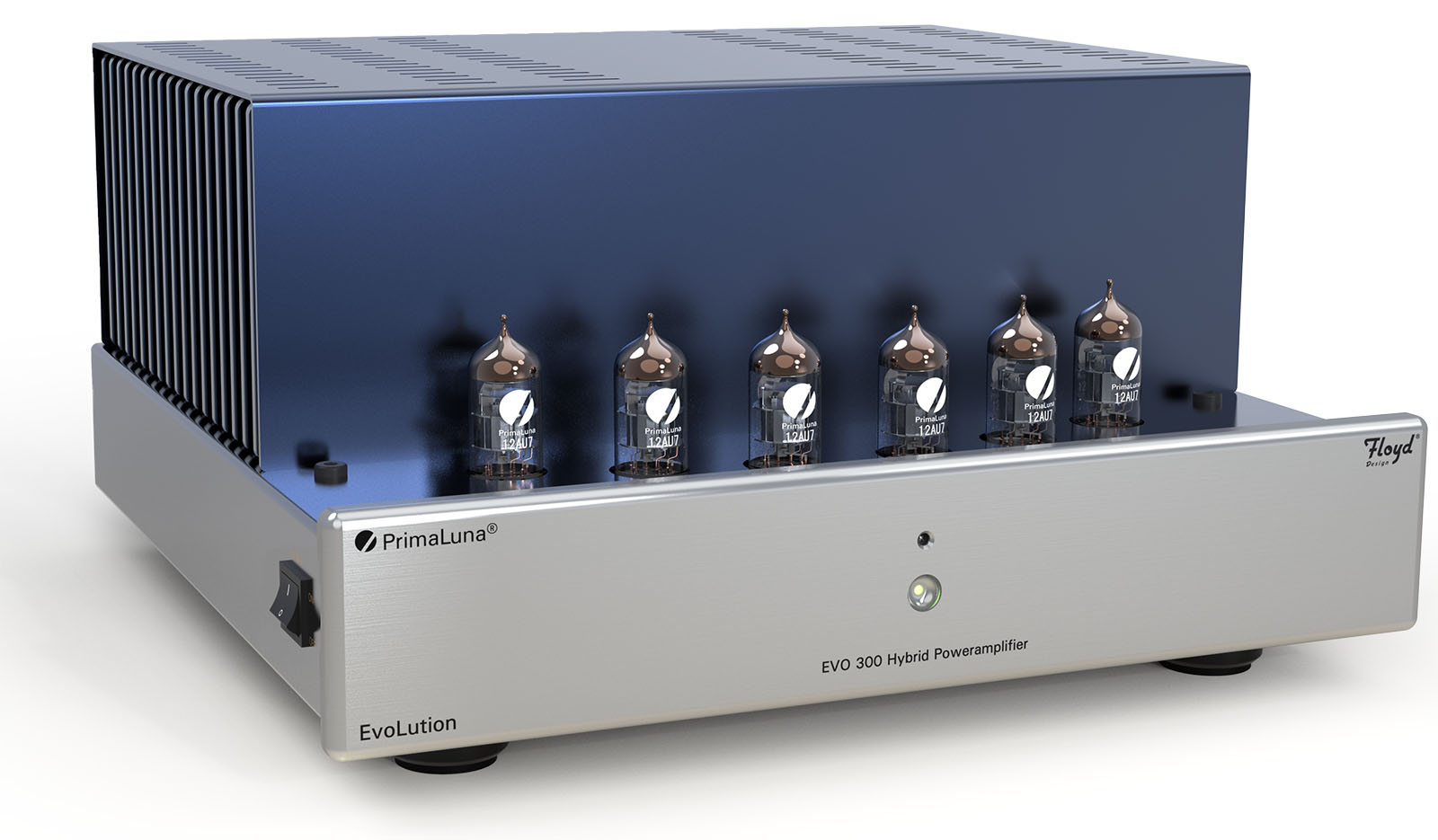

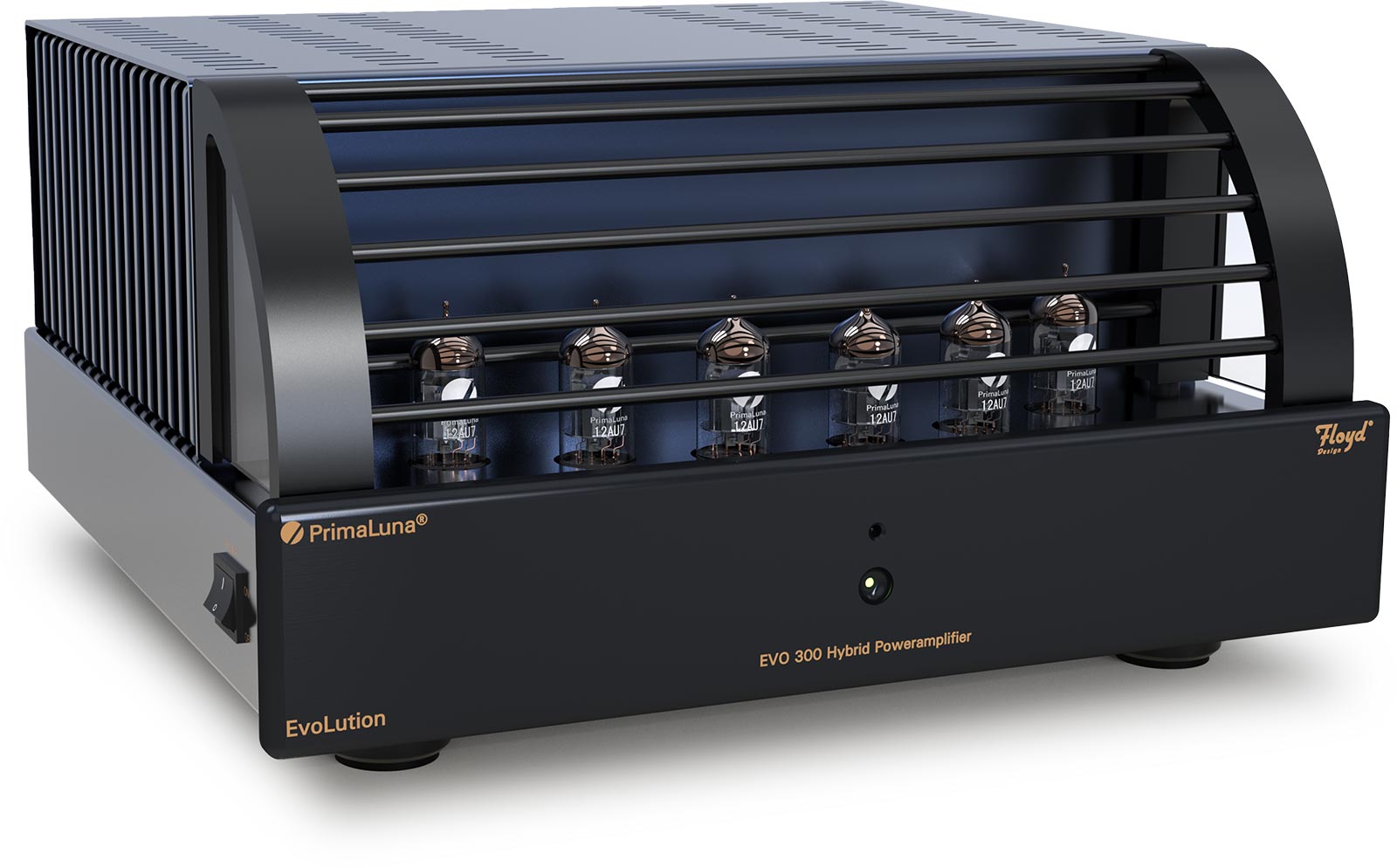

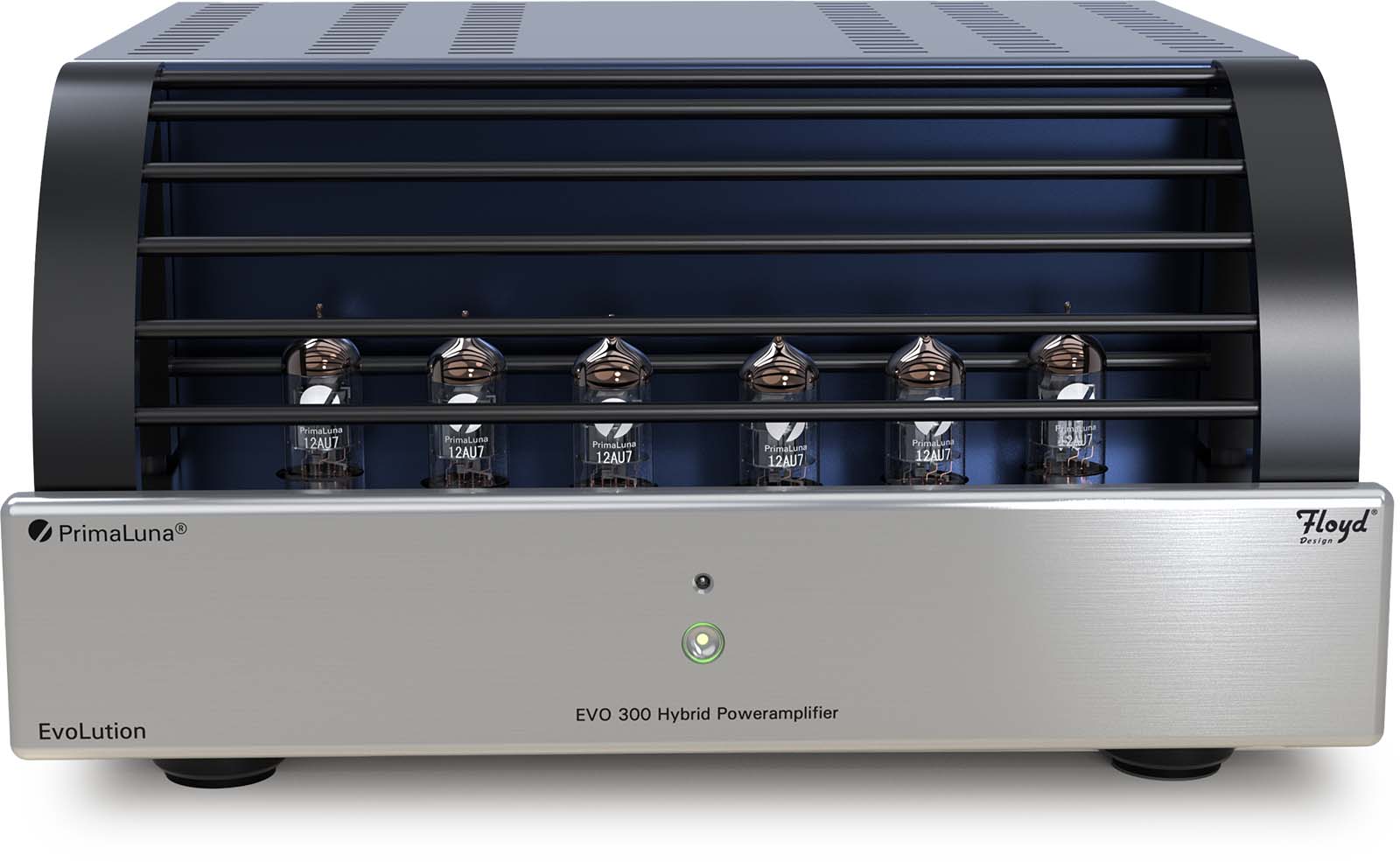

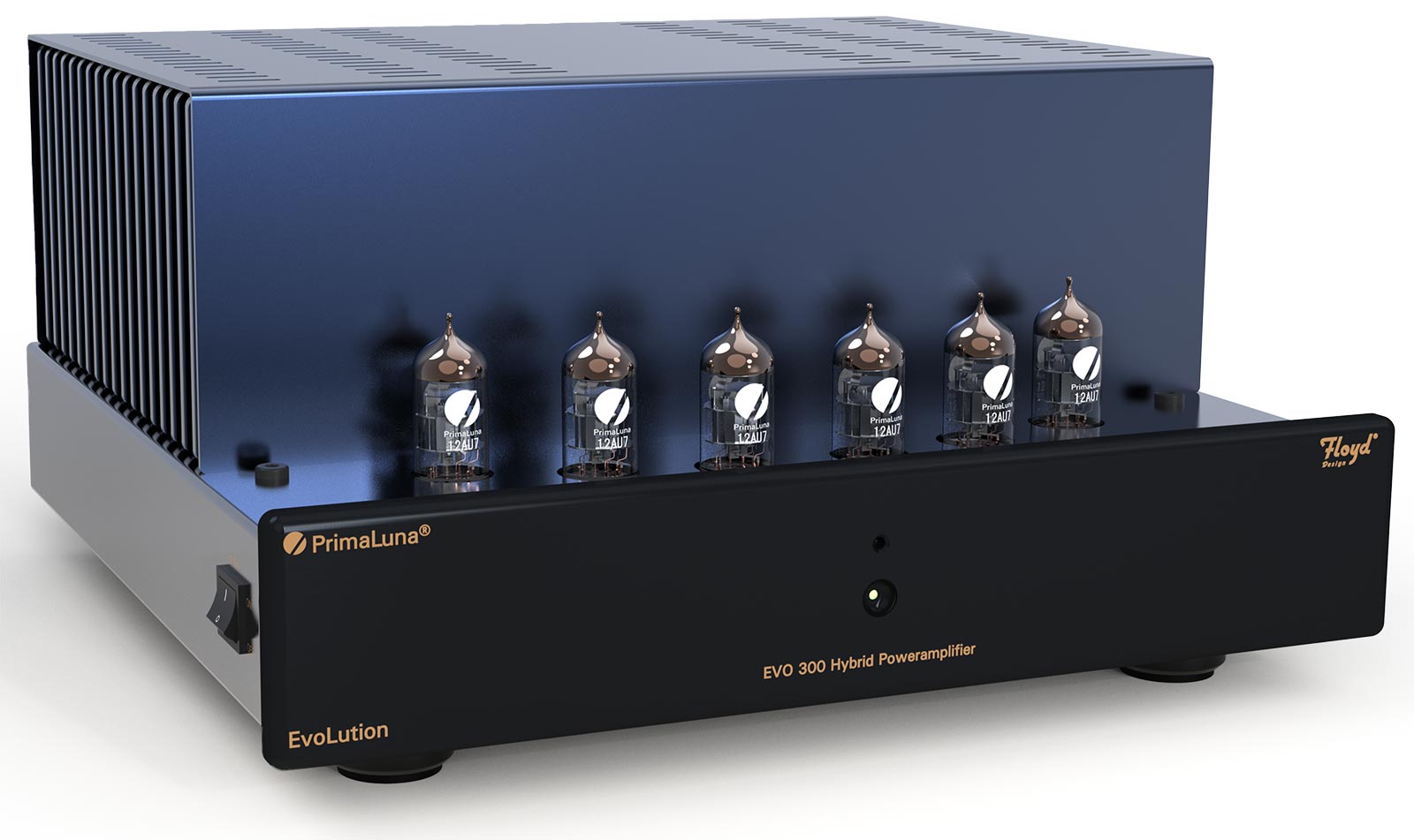

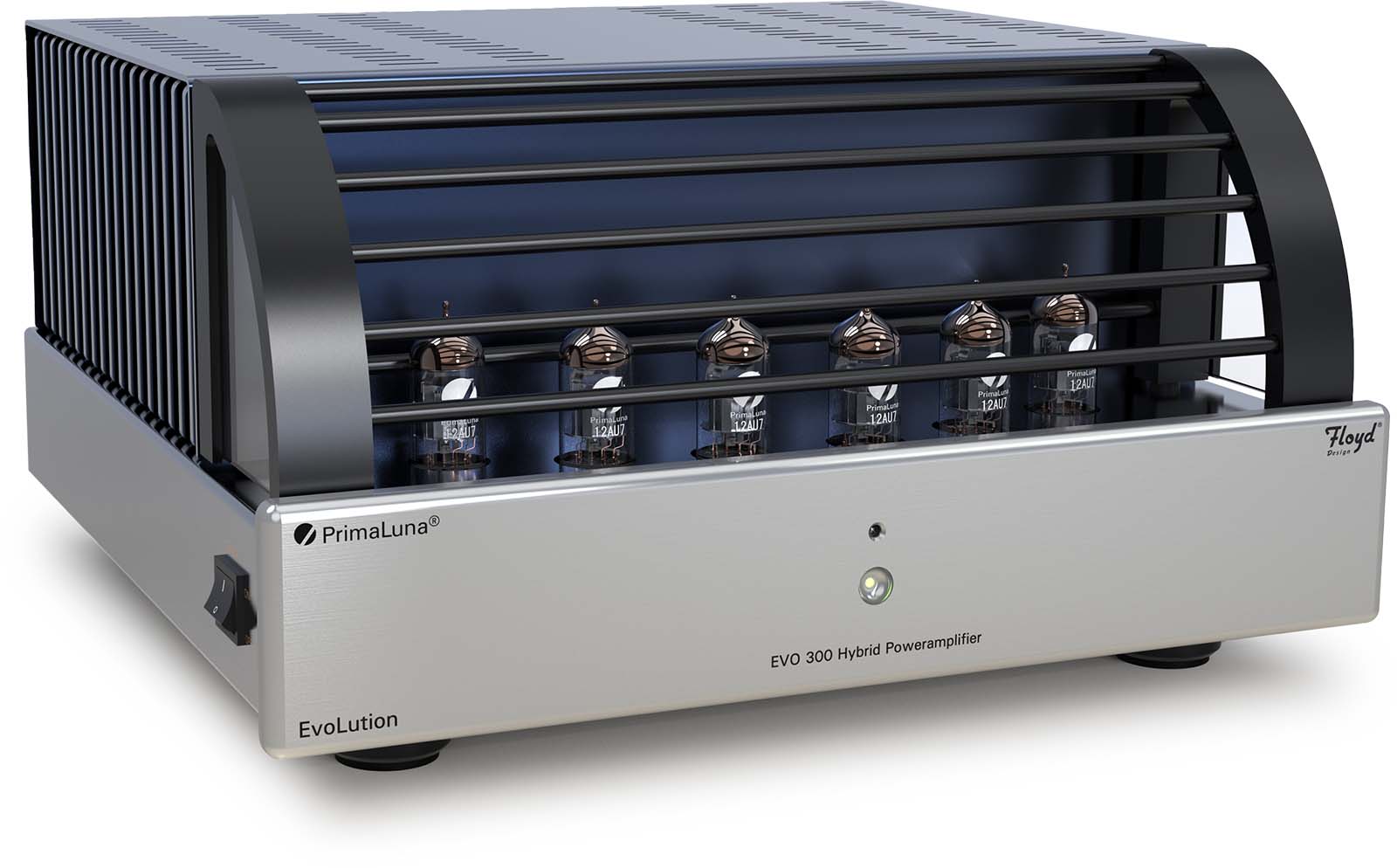

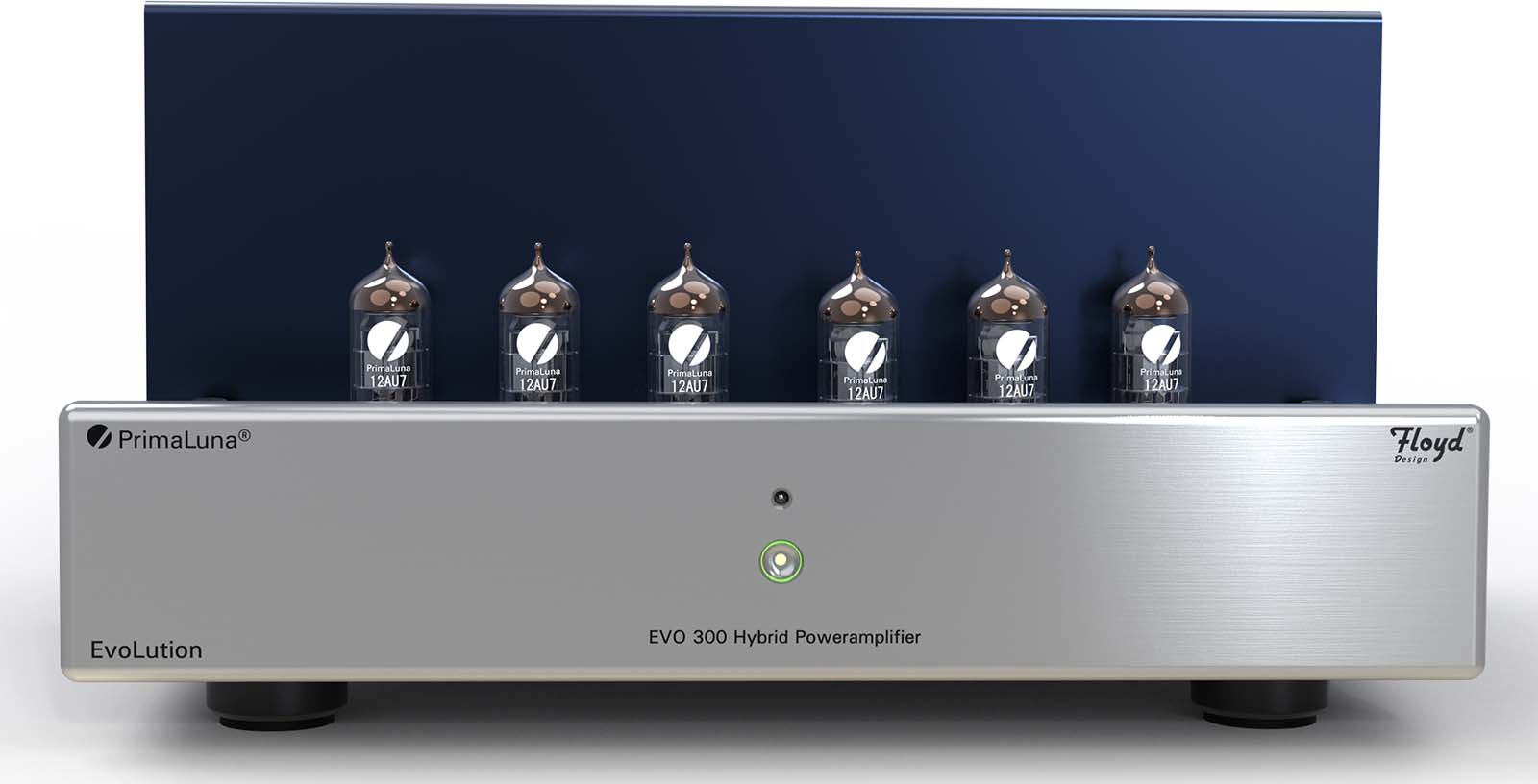

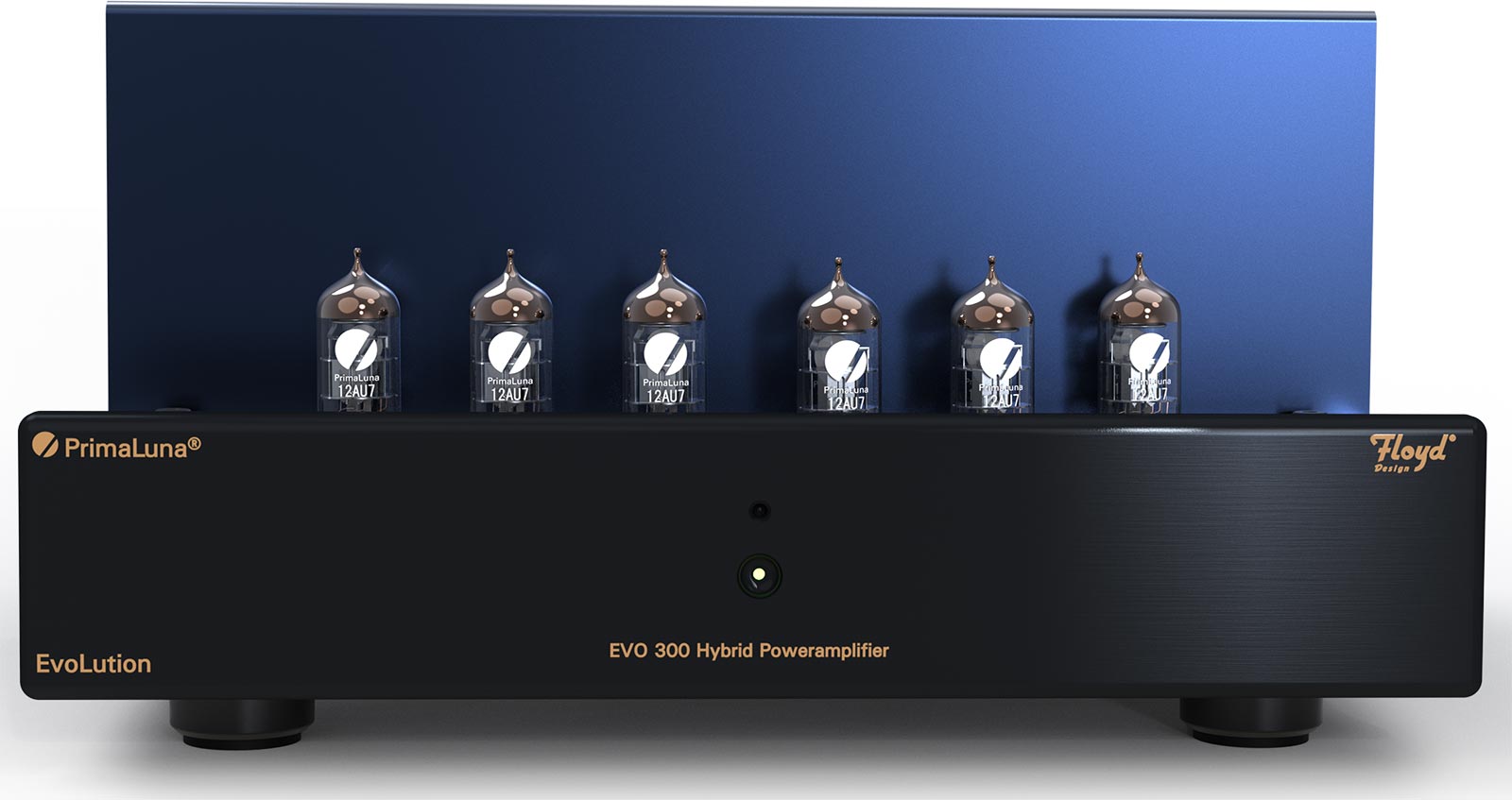

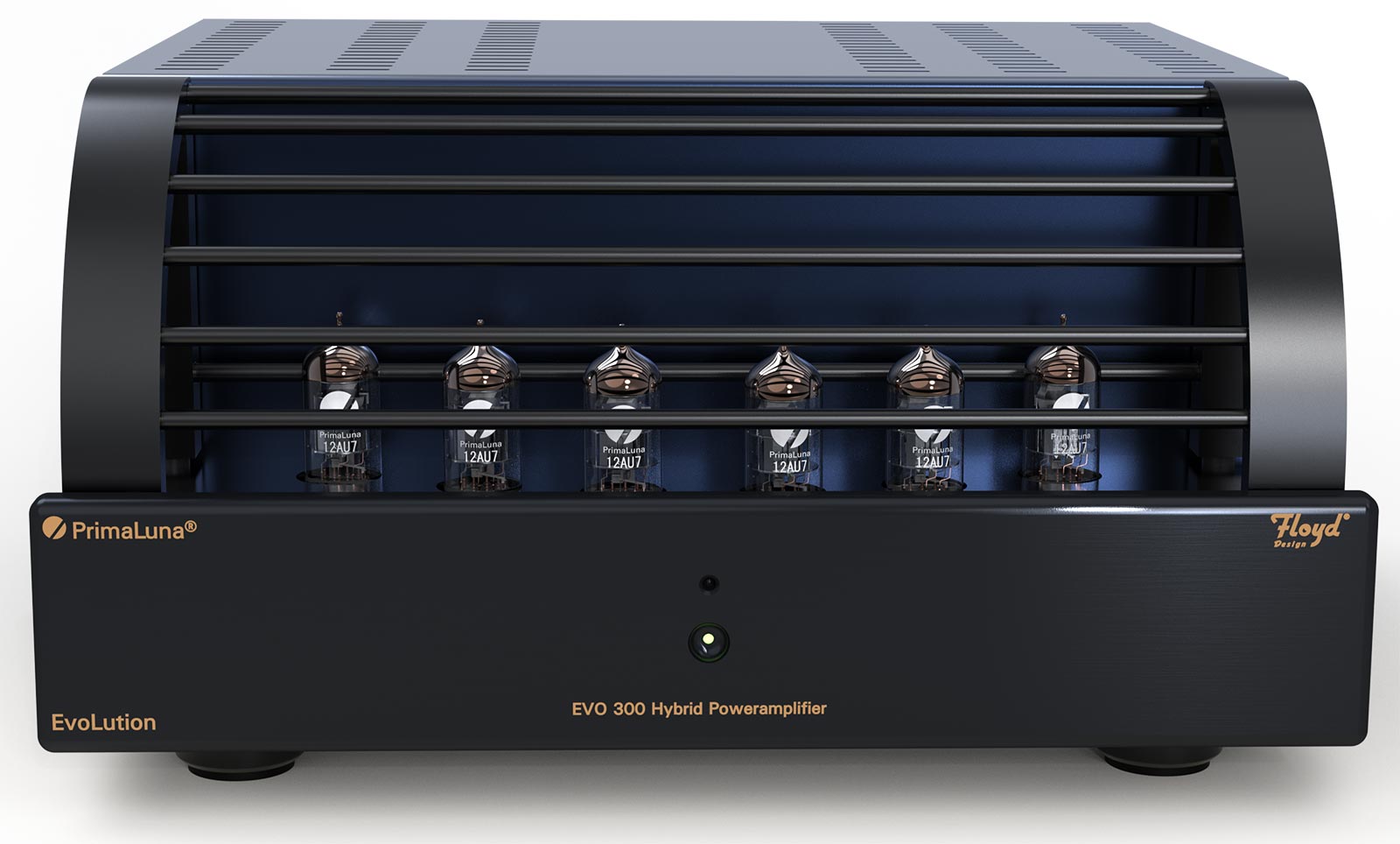

EVO 300 Hybrid Poweramplifier
| Specifications | Model EVO 300 Hybrid Poweramplifier |
| Power 8 Ohm | > 100 Watts per stereo channel (typical 115 Watts) > 220 Watts per mono channel (typical 245 Watts) |
| Power 4 Ohm | > 150 Watts per stereo channel (typical 160 Watts) > 300 Watts per mono channel (typical 303 Watts) |
| Frequency Response | 10 Hz – 80 kHz +/- 3 dB |
| THD with AABB | < 0.2% 100W @ 8 Ohm (stereo) < 0.2% 245W @ 8 Ohm (mono) |
| S/N Ratio | -105dB (A-Weighted) |
| Input Impedance | 32 kOhm (RCA), 49 kOhm (XLR) for stereo 18 kOhm (RCA), 50 kOhm (XLR) for mono |
| Input Sensitivity | 805 mV (RCA), 901mV (XLR) for stereo 1330 mV (RCA), 1340 mV (XLR) for mono |
| Total Gain | 30 dB (H), 24 dB (L) |
| Power Consumption | 104 Watts (no signal in); 645W@4R |
| Weight | Net weight: 68.3 lbs / 31 kg Shipping Weight: 77.2 lbs / 35 kg |
| Dimensions | 15.9" x 15.2" x 8.1" / 405 x 385 x 205 mm (L x W x H) |
| Shipping dimensions | 22.7" x 18.4" x 12.4" / 578 x 468 x 316 mm (L x W x H) |
| Inputs | 1 pairs Stereo RCA, 1 pair Stereo XLR |
| Outputs | Stereo tap |
| Tube Complement | 6 x 12AU7 |
| Damping Coefficient | 300 (1 kHz) for stereo 150 (1 kHz) for mono |
Since 2003 PrimaLuna has been building pure valve amplifiers with a clear mission: delivering high-performance valve-based audio components at affordable prices, resolving the reliability issues that had often dissuaded people from investing in the sonic beauty of valves. Our current, much-acclaimed EvoLution range spans 12 valve amplifiers – integrated amps, preamps and power amps across four price tiers – as well as a valve-based DAC.
In 2021, we revolutionized the audio world with the PrimaLuna EVO 300 Hybrid Integrated Amplifier, marking our first venture into hybrid amplification. Partnering with Floyd Design, the solid-state development department of Durob, we combined the best of both worlds: the effusive fluidity of valves and the power and control of solid-state technology. Building on this success, our expert designers, led by Herman van den Dungen, have spent years perfecting our latest model – the PrimaLuna EVO 300 Hybrid Poweramplifier, launching in 2024!
Why Choose the PrimaLuna EVO 300 Hybrid Poweramplifier?
The EVO 300 Hybrid offers a unique blend of tube amplifier warmth with the robust performance of a MOSFET power amplifier. Here's why it's a game-changer:
- Tube Sound with Power and Control: Experience the lush sound of tubes combined with the power and efficiency of MOSFET technology.
- Advanced Design: Incorporates Junction FETs, hand-matched transistors, and a double pair of MOSFETs, all powered by a generously sized power supply.
- Superior Components: Includes PrimaLuna Silver Label tubes, Swiss DuRoch tinfoil capacitors, and Japanese Takman resistors, ensuring unparalleled sound quality and reliability.
- Meticulous Construction: Features hard wiring, heavy-duty anti-resonant PCB material, and thick copper tracks for the highest fidelity.
- Versatility: By enabling the mono function, users can use two PrimaLuna EVO 300 Hybrid Poweramplifiers as monoblock amplifiers, effectively doubling the power output and improving channel separation and soundstage.
Power-Amp Tube Section:
- Separate high-voltage power supplies for each tube and channel.
- Premium Swiss and Japanese components for optimal performance.
Power-Amp MOSFET Section:
- High-power transformers and capacitors for substantial output.
- Factory-matched MOSFETs and hand-made resonance-free output coil.
- Each power stage includes advanced protection circuits.
General Features:
- Dual inrush protection circuits.

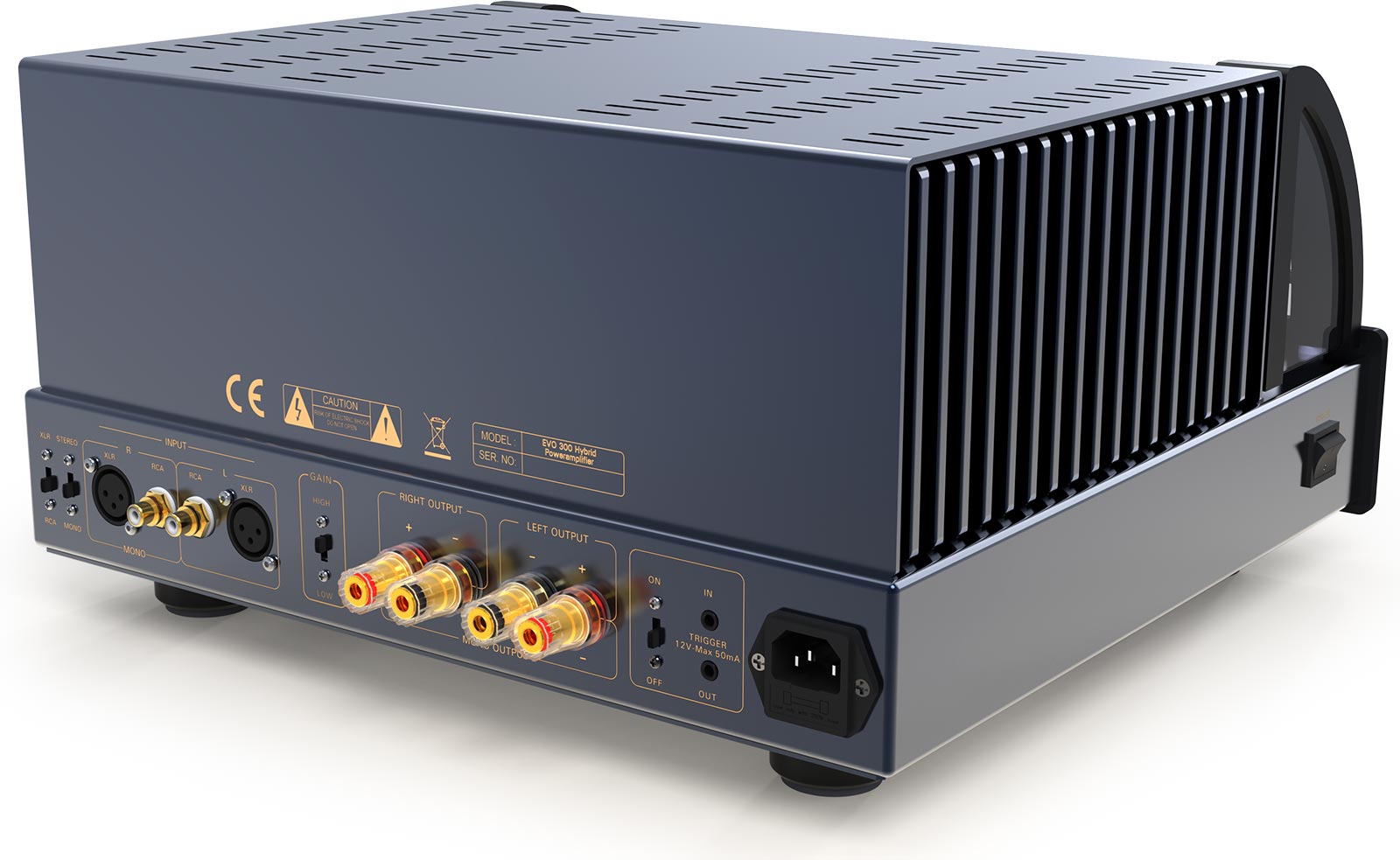

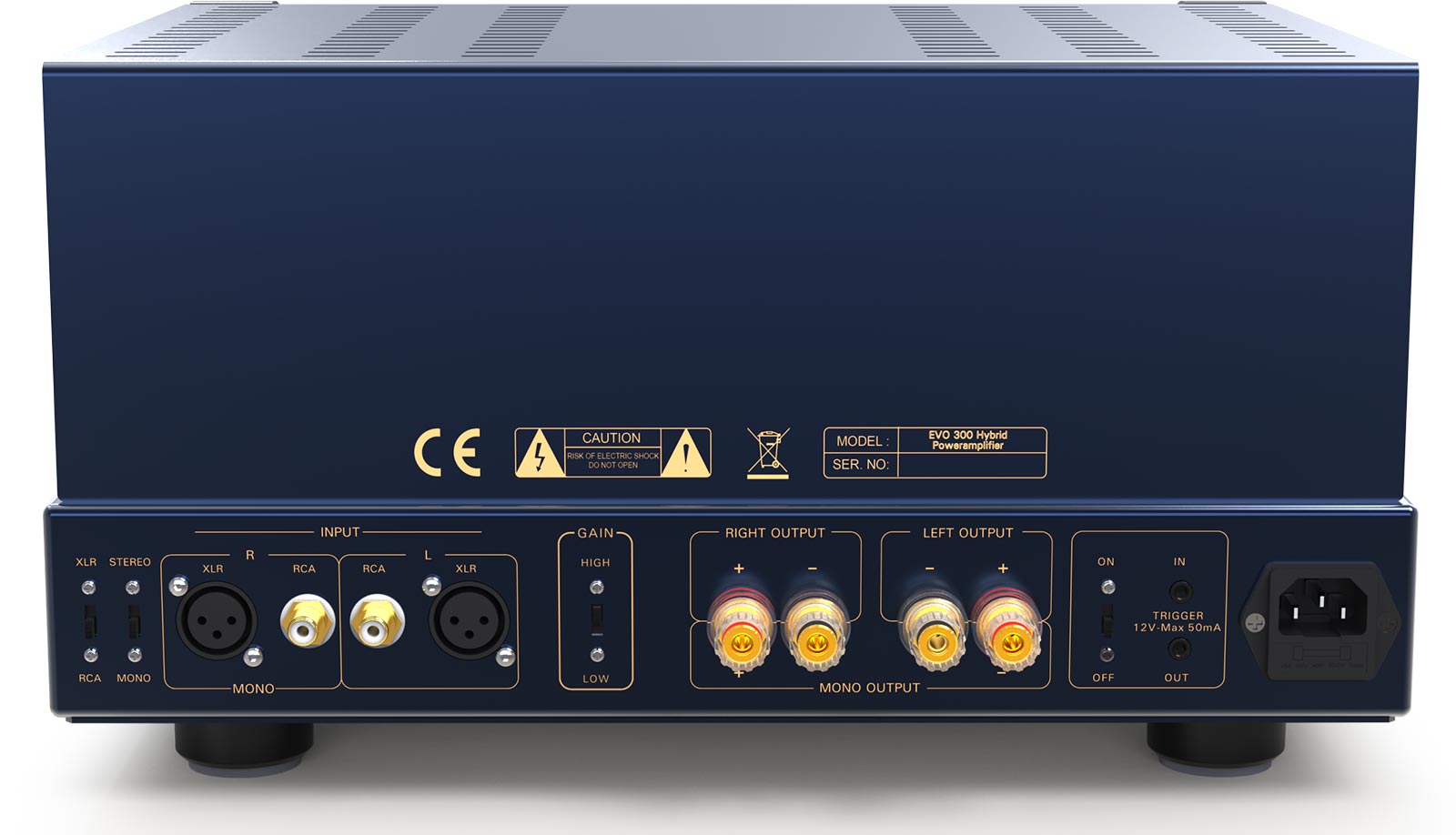

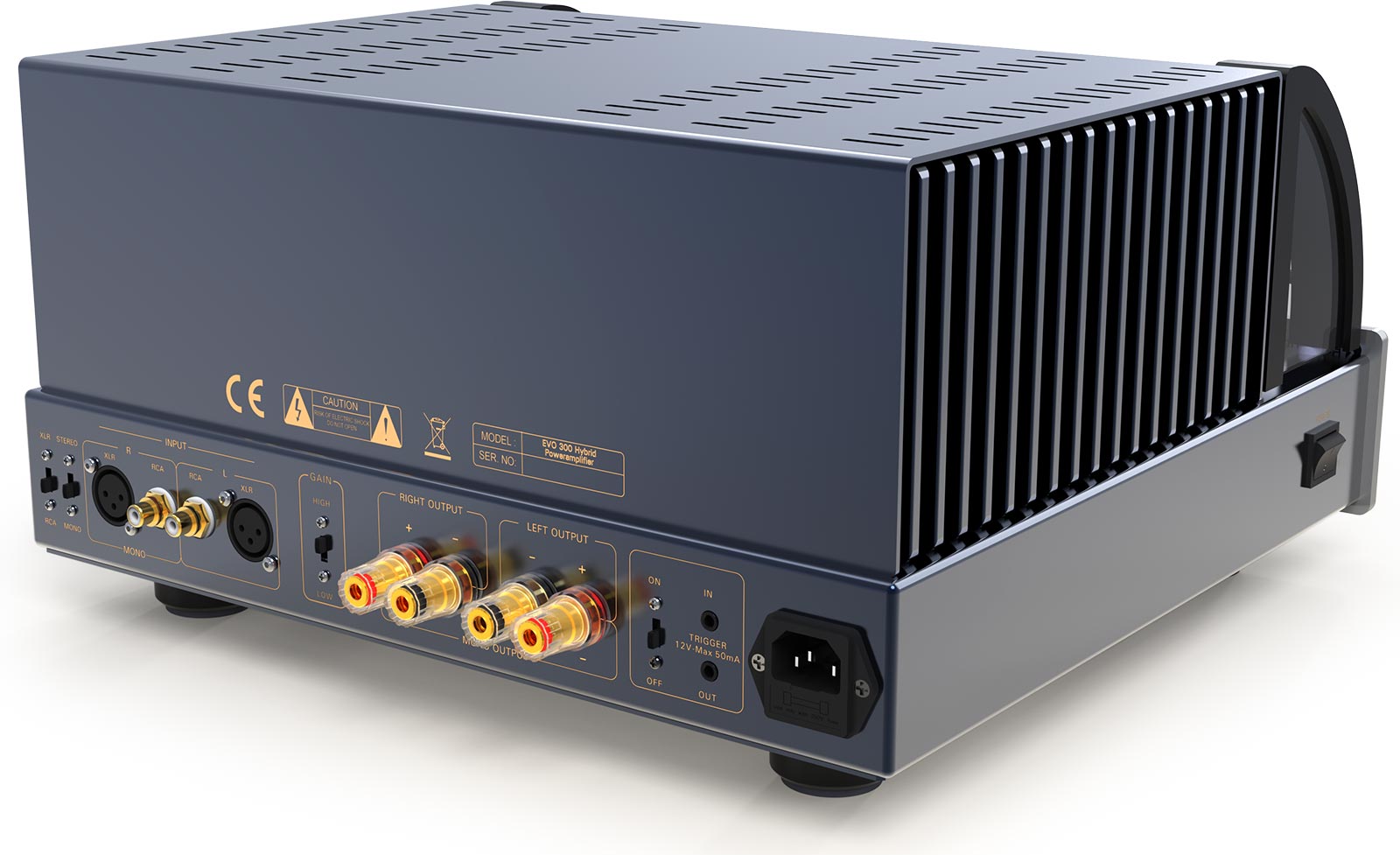

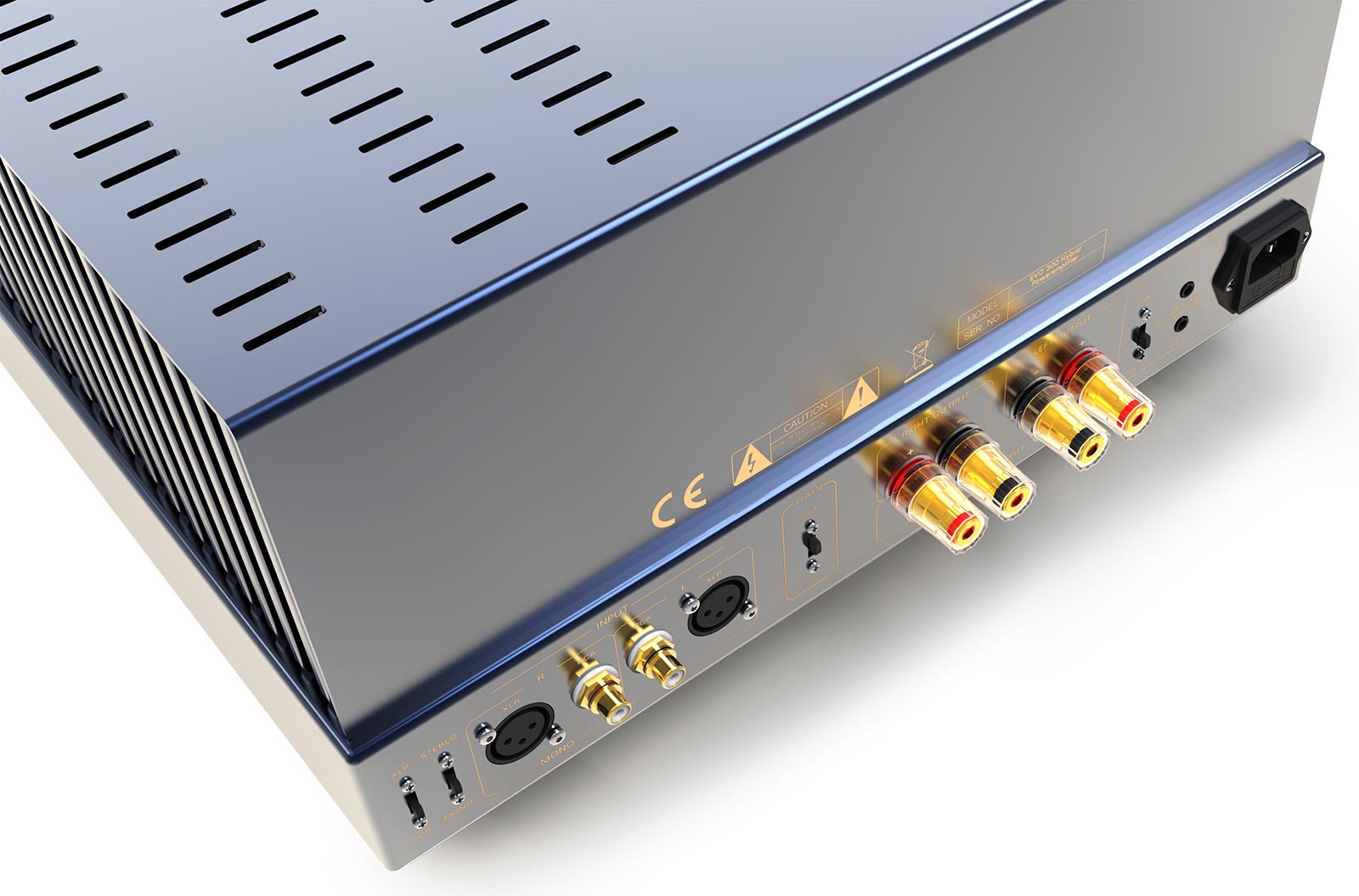

- Balanced (XLR) and unbalanced (RCA) inputs.
- Top-tier parts quality, inspected and matched for reliability and performance.
♪ ♫ ♪ ♫
Unmatched Sound Quality: The EVO 300 Hybrid Poweramplifier delivers a dynamic range, deep stereo imaging, expressive mid and high frequencies, and tight bass, offering a seamless sonic experience that truly captures the essence of your music.
Are you ready to elevate your audio experience? Discover the PrimaLuna EVO 300 Hybrid Poweramplifier – a testament to our commitment to superior sound quality and innovative design.
